In today’s microservices architecture, you might have several services in one repository, you even may have a monorepo with all your applications in a single place! But what if only a single service changed? What if a subset of them changed? In this tutorial, we’ll set up a GitHub Action that:
- Detects changes in the app/** folder (you may modify the name based on your personal need) where multiple microservices live.
- Builds and pushes Docker images only for the changed services.
- Triggers a deployment using ArgoCD (but you may want to use a different CD tech, no worries).
Let’s dive in step-by-step!
Prerequisites
Before you begin, make sure you have:
- A GitHub repository set up
- Basic knowledge of Docker and GitHub Actions
- GitHub CLI installed (for managing secrets)
- Docker installed on your machine
- A working ArgoCD installation
Step 1: Setting Up Your Repository & Folder Structure

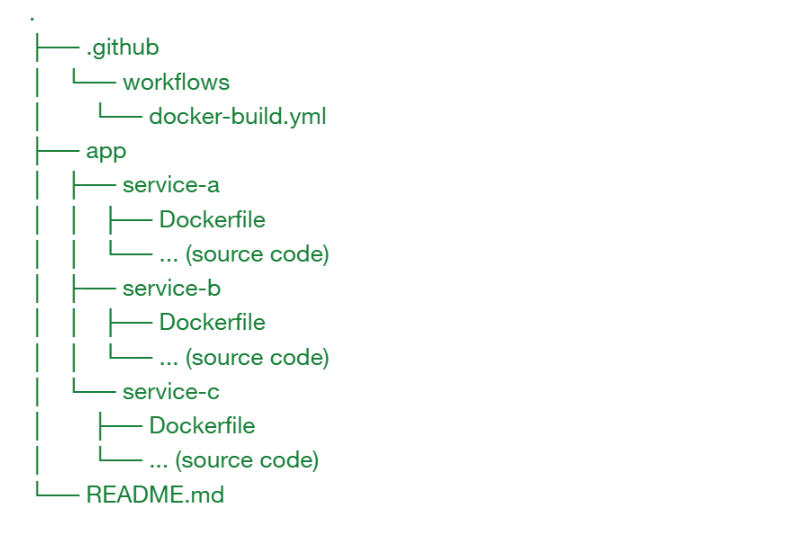

Assume you have a repository with multiple microservices, each with its own Dockerfile. Your repository might look like this:
Here, our GitHub Action will only build images for the services that changed.
Step 2: Creating the Dynamic GitHub Action Workflow
We need to first detect which microservices in the app/ folder have changed. We’ll do this in a dedicated job that creates a dynamic matrix for the build job.
Create the file .github/workflows/docker-build.yml with the following content:
name: Docker Build for Changed Microservices
on:
push:
paths:
- 'app/**'
jobs:
detect:
name: Detect Changed Services
runs-on: ubuntu-latest
outputs:
matrix: ${{ steps.get-matrix.outputs.matrix }}
steps:
- name: Checkout Repository Code
uses: actions/checkout@v3
with:
fetch-depth: 0
- name: Determine Changed Services
id: get-matrix
shell: bash
run: |
cd $GITHUB_WORKSPACE
echo "Detecting changes..."
CHANGED_FOLDERS=$(git diff --name-only ${{ github.event.before }} ${{ github.sha }} app | awk -F/ '!($2 ~ /^(Dockerfile|SomeFileYouDoNotWantToDetect|Makefile)$/) {print $2}' | sort -u | xargs)
echo "Changed folders: $CHANGED_FOLDERS"
matrix="{\"include\": ["
first=1
for service in $CHANGED_FOLDERS; do
if [ -f "app/${service}/Dockerfile" ]; then
if [ $first -eq 0 ]; then
matrix+=","
fi
matrix+="{\"service\": \"${service}\"}"
first=0
fi
done
matrix+="]}"
echo "Matrix for build job: $matrix"
echo "matrix=$matrix" >> $GITHUB_OUTPUT
- name: Validate Matrix
if: ${{ fromJson(steps.get-matrix.outputs.matrix).include[0] == null }}
run: |
echo "Output from previous step:"
echo "${{ fromJson(steps.get-matrix.outputs.matrix).include.length }}"
echo "${{ steps.get-matrix.outputs.matrix }}"
echo "No services with a Dockerfile were changed. Exiting gracefully."
exit 0
build:
name: Build & Push Docker Images
needs: detect
runs-on: ubuntu-latest
if: ${{ fromJson(needs.detect.outputs.matrix).include[0] != null }}
strategy:
matrix: ${{ fromJson(needs.detect.outputs.matrix) }}
env:
DOCKER_USERNAME: ${{ secrets.DOCKER_USERNAME }}
DOCKER_PASSWORD: ${{ secrets.DOCKER_PASSWORD }}
steps:
- name: Checkout Repository
uses: actions/checkout@v3
- name: Set up Docker Buildx
uses: docker/setup-buildx-action@v2
- name: Login to DockerHub
uses: docker/login-action@v2
with:
registry: ghcr.io
username: juliolugo96 # Change to your Github username
password: ${{ github.token }}
- name: Build and Push Docker Image for ${{ matrix.service }}
uses: docker/build-push-action@v4
with:
context: ./app/${{ matrix.service }}
file: ./app/${{ matrix.service }}/Dockerfile
push: true
tags: ghcr.io/juliolugo96/${{ matrix.service }}:${{ github.sha }},ghcr.io/juliolugo96/${{ matrix.service }}:latest
# - name: Trigger ArgoCD Deployment for ${{ matrix.service }}
# env:
# ARGOCD_TOKEN: ${{ secrets.ARGOCD_TOKEN }}
# ARGOCD_SERVER: ${{ secrets.ARGOCD_SERVER }}
# run: |
# curl -H "Authorization: Bearer ${ARGOCD_TOKEN}" -X POST "https://${ARGOCD_SERVER}/api/v1/applications/your-argocd-app-${{ matrix.service }}/sync"
How It Works:
Such a beautiful yet simple code, right? Let me show you how it works:
- Detect Job:
- Checks out your repository.
- Uses git diff to determine which files in app/ changed.
- Extracts the service names (assumes structure app/<service>/…).
- Validates that a Dockerfile exists in each service folder.
- Outputs a JSON matrix containing only the changed services.
- Build Job:
- Runs for each service in the matrix.
- Checks out the repository and sets up Docker Buildx.
- Logs into GHCR using your secrets.
- Builds and pushes the Docker image for the specific service.
- Triggers an ArgoCD sync for the corresponding application.
Note: Adjust the Docker image tags and ArgoCD endpoints to match your environment.
Step 3: Defining Environment Variables & Secrets
Since our workflow relies on environment variables and secrets, you can automate their setup using the following shell script with GitHub CLI.
setup-secrets.sh
#!/bin/bash
# Ensure you are logged in with GitHub CLI: gh auth login
REPO=”your-github-username/your-repository”
# Set DockerHub credentials
gh secret set DOCKER_USERNAME –repo $REPO –body “your-dockerhub-username”
gh secret set DOCKER_PASSWORD –repo $REPO –body “your-dockerhub-password”
# Set ArgoCD credentials
gh secret set ARGOCD_TOKEN –repo $REPO –body “your-argocd-token”
gh secret set ARGOCD_SERVER –repo $REPO –body “your-argocd-server-address”
echo “Secrets have been set for $REPO!”
Run this script from your terminal:
chmod +x setup-secrets.sh
./setup-secrets.sh
Step 4: Deploying with ArgoCD
Once a Docker image is built and pushed, our workflow triggers an ArgoCD sync. This sync uses a simple curl command to notify ArgoCD that the application (per microservice) has been updated.
If your deployment strategy is more complex, consider:
- Using the ArgoCD CLI action.
- Creating dedicated ArgoCD projects for each microservice.
Check ArgoCD’s documentation for more advanced deployment configurations.
Wrapping Up
Congratulations! You now have a fully automated CI/CD pipeline that:
- Detects changes in individual microservices within the app/ folder.
- Builds and pushes Docker images only for the changed services.
- Triggers deployments via ArgoCD for each updated microservice.
This setup helps you efficiently manage multiple microservices within a single repository. Customize and expand the workflow to suit your project’s needs, and enjoy a smoother DevOps experience!
Want to see the full code in action? Check out the repository .
